6.5L Turbo Diesel Project
This is a custom Chevrolet 6.5L Turbo Diesel Engine that I built for myself back in 2000.  Countless hours put into the numerous custom designed and machined parts.  This engine was featured in an article on "The Diesel Page.com" and also mentioned in "Diesel World Magazine".
Truing block surfaces.
Truing Block Girdle at assembly.
Correcting Rod Length and adding Oil Groove.
Custom CNC Machined Pistons to lower Compression to 18:1.
Block Girdle ready to install.
Mocked up components.
Bottom End assembled.
Bottom End assembled.

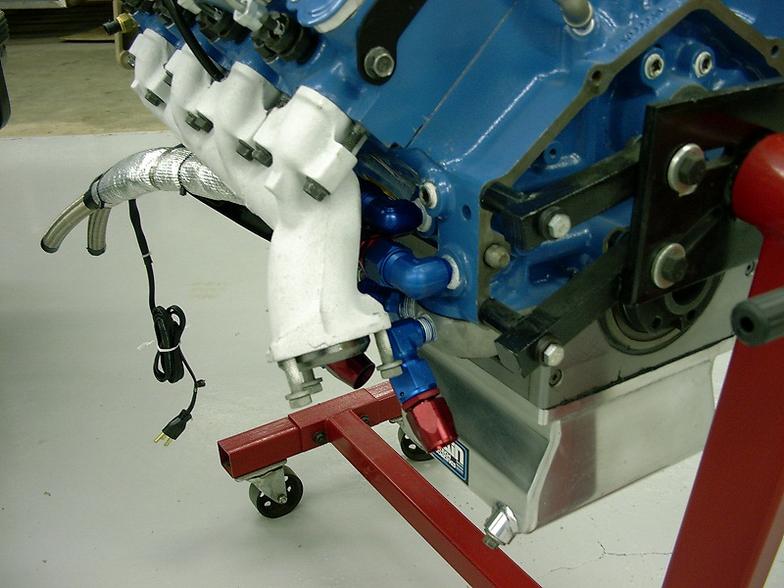

Custom aluminum Oil Pan.
Ceramic Coatings on combustion chamber and gasket matched ports.
Custom fabricated roller rocker valvetrain with roller fulcrum and roller tip.  Custom machined aluminum valve cover spacers.
Custom machined intake ports with custom machined phoenolic and stainless steel inserts.
Custom Machined aluminum intake snorkel.
Custom Machined aluminum Intercooler.
